IRF8113TRPBF
IR (Infineon Technologies)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 30V 17.2A 8SO
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet IRF8113TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 2,368
Can ship immediately
Pricing:
- 1$0.81
- 4,000$0.36158
- 8,000$0.33665
- 12,000$0.32418
- 28,000$0.31737
Quote It
Technical Details
- Series:HEXFET®
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):30 V
- Current - Continuous Drain (Id) @ 25°C:17.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
- Rds On (Max) @ Id, Vgs:5.6mOhm @ 17.2A, 10V
- Vgs(th) (Max) @ Id:2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:36 nC @ 4.5 V
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:2910 pF @ 15 V
- FET Feature:-
- Power Dissipation (Max):2.5W (Ta)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Supplier Device Package:8-SO
- Package / Case:8-SOIC (0.154", 3.90mm Width)
Related Products

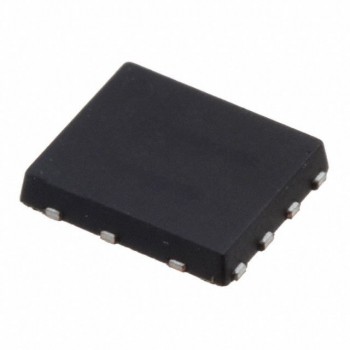

MOSFET FIELD EFFECT 8DFN DL
