In Stock: 4,108

Can ship immediately

Pricing:
  • 1$0.87
  • 4,000$0.39088
  • 8,000$0.36392
  • 12,000$0.35044
  • 28,000$0.34309

Quote It

Technical Details

  • Series:HEXFET®
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):30 V
  • Current - Continuous Drain (Id) @ 25°C:22A (Ta), 79A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Rds On (Max) @ Id, Vgs:4.5mOhm @ 47A, 10V
  • Vgs(th) (Max) @ Id:2.35V @ 50µA



  • Gate Charge (Qg) (Max) @ Vgs:41 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:2360 pF @ 10 V
  • FET Feature:-
  • Power Dissipation (Max):3.6W (Ta), 46W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:8-PQFN (5x6)
  • Package / Case:8-PowerVDFN

Related Products


IRF6724MTRPBF

MOSFET N-CH 30V 27A/150A DIRECT

IRF6724MTRPBF Datasheet
  • 1: $0.88000
  • 4800: $0.88000

IRF40DM229

MOSFET N-CH 40V 159A DIRECTFET

IRF40DM229 Datasheet
  • 1: $0.88000
  • 4800: $0.88000

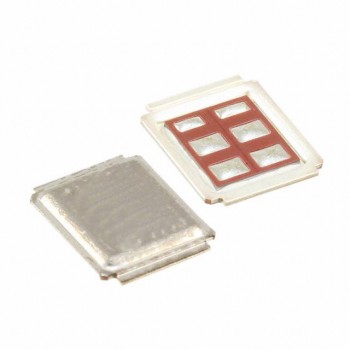

IRL7486MTRPBF
