IPB120N06S4H1ATMA2

IR (Infineon Technologies)
In Stock: 1,039

Can ship immediately

Pricing:
  • 1$3.78
  • 1,000$1.6551

Quote It

Technical Details

  • Series:Automotive, AEC-Q101, OptiMOS™
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):60 V
  • Current - Continuous Drain (Id) @ 25°C:120A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:2.4mOhm @ 100A, 10V
  • Vgs(th) (Max) @ Id:4V @ 200µA



  • Gate Charge (Qg) (Max) @ Vgs:270 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:21900 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):250W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:PG-TO263-3-2
  • Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Related Products

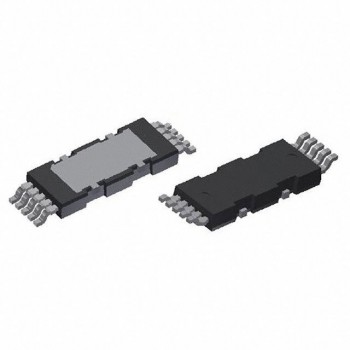

IPDD60R125G7XTMA1

MOSFET N-CH 600V 20A HDSOP-10

IPDD60R125G7XTMA1 Datasheet
  • 1: $3.82000
  • 1700: $2.30492
  • 3400: $2.18967

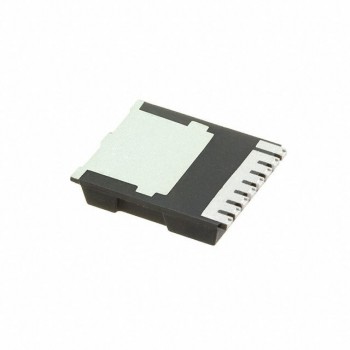

IAUT150N10S5N035ATMA1

MOSFET N-CH 100V 150A 8HSOF

IAUT150N10S5N035ATMA1 Datasheet
  • 1: $3.86000
  • 2000: $2.59342

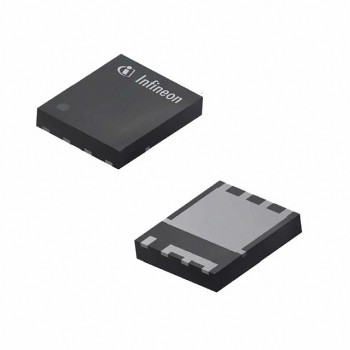

BSC021N08NS5ATMA1

MOSFET TRENCH 80V TSON-8

  • 1: $3.93000
  • 5000: $1.89741

IPA65R065C7XKSA1

MOSFET N-CH 650V 15A TO220-FP

IPA65R065C7XKSA1 Datasheet
  • 1: $3.95000
  • 500: $3.95000

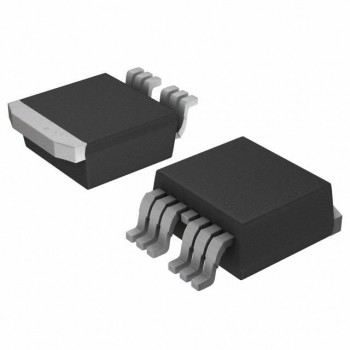

FDB0170N607L

POWER FIELD-EFFECT TRANSISTOR, N

FDB0170N607L Datasheet
  • 1: $3.96000
  • 800: $3.85289

FDA8440

MOSFET N-CH 40V 30A/100A TO3PN

FDA8440 Datasheet
  • 1: $3.98000
  • 10: $3.55585
  • 450: $2.63127

IPB014N06NATMA1

MOSFET N-CH 60V 34A/180A TO263-7

IPB014N06NATMA1 Datasheet
  • 1: $3.99000
  • 1000: $2.19372
  • 2000: $2.08403

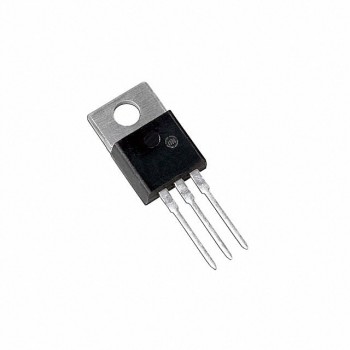

FDP2D3N10C
