IPB100N12S305ATMA1

IR (Infineon Technologies)
In Stock: 160

Can ship immediately

Pricing:
  • 1$4.13
  • 1,000$2.50061
  • 2,000$2.37558

Quote It

Technical Details

  • Series:OptiMOS™
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):120 V
  • Current - Continuous Drain (Id) @ 25°C:100A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:5.1mOhm @ 100A, 10V
  • Vgs(th) (Max) @ Id:4V @ 240µA



  • Gate Charge (Qg) (Max) @ Vgs:185 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:11570 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):300W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:PG-TO263-3
  • Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA

Related Products


IRFS4310TRLPBF

MOSFET N-CH 100V 130A D2PAK

IRFS4310TRLPBF Datasheet
  • 1: $4.17000
  • 800: $2.45957
  • 1600: $2.29559

IPB60R099P7ATMA1

MOSFET N-CH 650V 31A D2PAK

IPB60R099P7ATMA1 Datasheet
  • 1: $4.18000
  • 1000: $2.66243
  • 2000: $2.52931

IPW60R060C7

IPW60R060 - 600V COOLMOS N-CHANN

  • 1: $4.18000

BTS244ZE3062AATMA2

MOSFET N-CH 55V 35A TO263-5

BTS244ZE3062AATMA2 Datasheet
  • 1: $4.23000
  • 1000: $2.29010

BTS115ANKSA1

MOSFET N-CH 50V 15.5A TO220AB

BTS115ANKSA1 Datasheet
  • 1: $4.33000

2N6847

POWER FIELD-EFFECT TRANSISTOR, P

  • 1: $4.33000

IRFS3107TRL7PP

MOSFET N-CH 75V 240A D2PAK

IRFS3107TRL7PP Datasheet
  • 1: $4.34000
  • 800: $3.12689
  • 1600: $2.93996

IRF7769L1TRPBF

MOSFET N-CH 100V 20A DIRECTFET

IRF7769L1TRPBF Datasheet
  • 1: $4.36000
  • 4000: $2.18741

IRF7749L1TRPBF

MOSFET N-CH 60V 33A DIRECTFET

IRF7749L1TRPBF Datasheet
  • 1: $4.36000
  • 4000: $2.18741

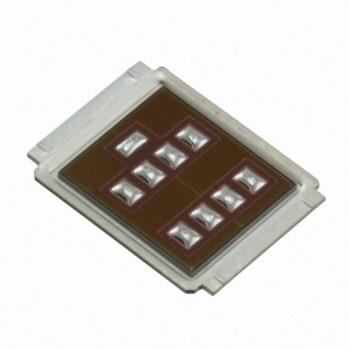

IRF7739L1TRPBF
