In Stock: 285

Can ship immediately

Pricing:
  • 1$3.94
  • 30$3.20727
  • 120$2.9423
  • 510$2.42605
  • 1,020$2.08187
  • 2,520$1.98921
  • 5,010$1.92302

Quote It

Technical Details

  • Series:PowerMESH™
  • Package:Tube
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):1500 V
  • Current - Continuous Drain (Id) @ 25°C:2.5A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:9Ohm @ 1.3A, 10V
  • Vgs(th) (Max) @ Id:5V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:29.3 nC @ 10 V
  • Vgs (Max):±30V
  • Input Capacitance (Ciss) (Max) @ Vds:939 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):140W (Tc)
  • Operating Temperature:150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-247-3
  • Package / Case:TO-247-3

Related Products


STF33N60M2

MOSFET N-CH 600V 26A TO220FP

STF33N60M2 Datasheet
  • 1: $4.02000
  • 50: $3.28143
  • 100: $3.01063

IXTQ130N10T

MOSFET N-CH 100V 130A TO3P

IXTQ130N10T Datasheet
  • 1: $4.33000
  • 30: $3.48407
  • 120: $3.17438

IXFH16N50P

MOSFET N-CH 500V 16A TO247AD

IXFH16N50P Datasheet
  • 1: $4.71000
  • 30: $3.78134
  • 120: $3.44504

IPW60R125P6XKSA1

MOSFET N-CH 600V 30A TO247-3

IPW60R125P6XKSA1 Datasheet
  • 1: $4.76000
  • 10: $4.27956
  • 240: $3.55897

FQAF13N80

MOSFET N-CH 800V 8A TO3PF

FQAF13N80 Datasheet
  • 1: $4.89000
  • 10: $4.36783
  • 360: $3.23238

IXFA270N06T3

MOSFET N-CH 60V 270A TO263AA

IXFA270N06T3 Datasheet
  • 1: $5.00000
  • 50: $4.01602
  • 100: $3.65904

IXFH220N06T3

MOSFET N-CH 60V 220A TO247

IXFH220N06T3 Datasheet
  • 1: $5.39000
  • 30: $4.33494
  • 120: $3.94961

IXFP14N85XM

MOSFET N-CHANNEL 850V 14A TO220

IXFP14N85XM Datasheet
  • 1: $5.55000
  • 50: $4.46363
  • 100: $4.06675

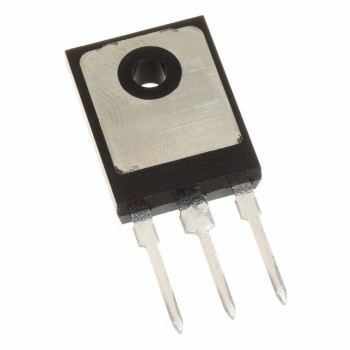

IPW60R099P6XKSA1
