FQP3N50C-F080

ON Semiconductor
In Stock: 65,913,146

Can ship immediately

Pricing:
  • 1$1.34
  • 10$1.18902
  • 100$0.93998
  • 500$0.72894
  • 1,000$0.57549

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):500 V
  • Current - Continuous Drain (Id) @ 25°C:1.8A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:2.5Ohm @ 1.5A, 10V
  • Vgs(th) (Max) @ Id:4V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:13 nC @ 10 V
  • Vgs (Max):±30V
  • Input Capacitance (Ciss) (Max) @ Vds:365 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):62W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-220-3
  • Package / Case:TO-220-3

Related Products


R5007FNX

MOSFET N-CH 500V 7A TO220FM

R5007FNX Datasheet
  • 1: $1.38000
  • 10: $1.23758
  • 100: $0.96490

R5007ANX

MOSFET N-CH 500V 7A TO220FM

R5007ANX Datasheet
  • 1: $1.38000
  • 10: $1.23758
  • 100: $0.96490

FQPF5N50CYDTU

MOSFET N-CH 500V 5A TO220F-3

FQPF5N50CYDTU Datasheet
  • 1: $1.39000
  • 10: $1.23465
  • 100: $0.97573

IPA60R950C6XKSA1

MOSFET N-CH 600V 4.4A TO220-FP

IPA60R950C6XKSA1 Datasheet
  • 1: $1.40000
  • 10: $1.25282
  • 100: $1.00387

TP2535N3-G

MOSFET P-CH 350V 86MA TO92-3

TP2535N3-G Datasheet
  • 1: $1.42000
  • 25: $1.18369
  • 100: $1.07183

SIHF5N50D-E3

MOSFET N-CH 500V 5.3A TO220

SIHF5N50D-E3 Datasheet
  • 1: $1.43000
  • 10: $1.26724
  • 100: $1.00147

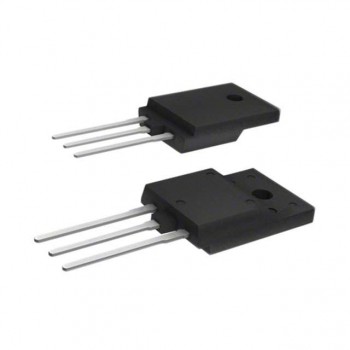

IPA50R280CEXKSA2
