FQPF5N90

ON Semiconductor
In Stock: 8,546,154

Can ship immediately

Pricing:
  • 1$2.22
  • 10$2.00432
  • 100$1.61059
  • 500$1.2527
  • 1,000$1.03794

Quote It

Technical Details

  • Series:QFET®
  • Package:Tube
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):900 V
  • Current - Continuous Drain (Id) @ 25°C:3A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:2.3Ohm @ 1.5A, 10V
  • Vgs(th) (Max) @ Id:5V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:40 nC @ 10 V
  • Vgs (Max):±30V
  • Input Capacitance (Ciss) (Max) @ Vds:1550 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):51W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-220F
  • Package / Case:TO-220-3 Full Pack

Related Products


SIHA4N80E-GE3

MOSFET N-CH 800V 4.3A TO220

SIHA4N80E-GE3 Datasheet
  • 1: $2.23000
  • 10: $2.02174
  • 100: $1.63729

SIHF7N60E-GE3

MOSFET N-CHANNEL 600V 7A TO220

SIHF7N60E-GE3 Datasheet
  • 1: $2.24000
  • 1000: $1.16955
  • 2000: $1.09365

R6007ENX

MOSFET N-CH 600V 7A TO220FM

R6007ENX Datasheet
  • 1: $2.24000
  • 10: $2.00831
  • 100: $1.61379

STI18N65M2

MOSFET N-CH 650V 12A I2PAK

STI18N65M2 Datasheet
  • 1: $2.26000
  • 50: $1.82250
  • 100: $1.64026

IRFSL3306PBF

MOSFET N-CH 60V 120A TO262

IRFSL3306PBF Datasheet
  • 1: $2.29000
  • 50: $1.84973
  • 100: $1.66473

SIHA15N50E-E3

MOSFET N-CH 500V 14.5A TO220

SIHA15N50E-E3 Datasheet
  • 1: $2.30000
  • 10: $2.07855
  • 100: $1.67016

CSD18510KTTT

MOSFET N-CH 40V 274A DDPAK

  • 1: $2.73000
  • 50: $2.07086
  • 100: $1.86377

IRFB4620PBF

MOSFET N-CH 200V 25A TO220AB

IRFB4620PBF Datasheet
  • 1: $2.32000
  • 10: $2.09423
  • 100: $1.68302

IRFB4410ZGPBF

MOSFET N-CH 100V 97A TO220AB

IRFB4410ZGPBF Datasheet
  • 1: $2.35000
  • 50: $1.89687
  • 100: $1.70715

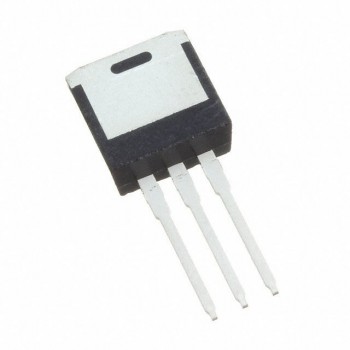

IPI90N04S402AKSA1
