IPA65R400CEXKSA1

IR (Infineon Technologies)
In Stock: 1,145

Can ship immediately

Pricing:
  • 1$1.5
  • 500$0.8982

Quote It

Technical Details

  • Series:CoolMOS™
  • Package:Tube
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):650 V
  • Current - Continuous Drain (Id) @ 25°C:15.1A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:400mOhm @ 3.2A, 10V
  • Vgs(th) (Max) @ Id:3.5V @ 320µA



  • Gate Charge (Qg) (Max) @ Vgs:39 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:710 pF @ 100 V
  • FET Feature:Super Junction
  • Power Dissipation (Max):31W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:PG-TO220 Full Pack
  • Package / Case:TO-220-3 Full Pack

Related Products


IRF9620PBF-BE3

MOSFET P-CH 200V 3.5A TO220AB

  • 1: $1.54000

2SK4196LS

N-CHANNEL SILICON MOSFET

2SK4196LS Datasheet
  • 1: $1.55000

HUF75545S3ST_NL

N-CHANNEL POWER MOSFET

  • 1: $1.55000

IRL1404STRLPBF

MOSFET N-CH 40V 160A D2PAK

IRL1404STRLPBF Datasheet
  • 1: $2.65000
  • 800: $1.64080

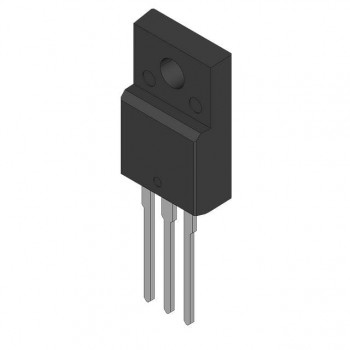

IRFI7536GPBF-IR
