STP80NF06

STMicroelectronics
In Stock: 792

Can ship immediately

Pricing:
  • 1$3.24
  • 1,000$1.59022

Quote It

Technical Details

  • Series:STripFET™ II
  • Package:Tube
  • Part Status:Not For New Designs
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):60 V
  • Current - Continuous Drain (Id) @ 25°C:80A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:8mOhm @ 40A, 10V
  • Vgs(th) (Max) @ Id:4V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:150 nC @ 10 V
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:3850 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):300W (Tc)
  • Operating Temperature:175°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-220AB
  • Package / Case:TO-220-3

Related Products


IRF740ALPBF

MOSFET N-CH 400V 10A I2PAK

IRF740ALPBF Datasheet
  • 1: $3.24000
  • 1000: $1.75898

STF12N65M5

MOSFET N-CH 650V 8.5A TO220FP

STF12N65M5 Datasheet
  • 1: $3.24000
  • 50: $2.61544
  • 100: $2.35386

IXFP12N65X2M

MOSFET N-CH 650V 12A TO220

  • 1: $3.27000

SPA16N50C3XKSA1

MOSFET N-CH 560V 16A TO220-3

SPA16N50C3XKSA1 Datasheet
  • 1: $3.31000
  • 500: $1.97071

IRFP7537PBF

MOSFET N-CH 60V 172A TO247

IRFP7537PBF Datasheet
  • 1: $3.37000
  • 10: $3.03136
  • 400: $2.29403

STP260N6F6

MOSFET N-CH 60V 120A TO220

STP260N6F6 Datasheet
  • 1: $3.38000
  • 50: $2.71766
  • 100: $2.47604

IRFB3256PBF

MOSFET N-CH 60V 75A TO220AB

IRFB3256PBF Datasheet
  • 1: $3.39000
  • 1000: $1.67784

AOTF160A60L

MOSFET N-CH 600V 24A TO220F

  • 1: $3.40000

IXTP90N15T

MOSFET N-CH 150V 90A TO220AB

IXTP90N15T Datasheet
  • 1: $3.40000
  • 50: $3.40000

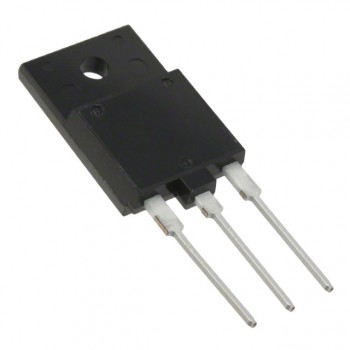

2SK3747-MG8
