In Stock: 406

Can ship immediately

Pricing:
  • 1$11.35
  • 30$9.307
  • 120$8.399
  • 510$7.037
  • 1,020$6.356

Quote It

Technical Details

  • Series:HiPerFET™, PolarHT™
  • Package:Tube
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):500 V
  • Current - Continuous Drain (Id) @ 25°C:19A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:190mOhm @ 18A, 10V
  • Vgs(th) (Max) @ Id:5V @ 4mA



  • Gate Charge (Qg) (Max) @ Vgs:93 nC @ 10 V
  • Vgs (Max):±30V
  • Input Capacitance (Ciss) (Max) @ Vds:5500 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):156W (Tc)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:ISOPLUS247™
  • Package / Case:ISOPLUS247™

Related Products


IXTH16N50D2

MOSFET N-CH 500V 16A TO247-3

IXTH16N50D2 Datasheet
  • 1: $11.60000
  • 10: $10.44000
  • 30: $9.51200

IXFT70N20Q3

MOSFET N-CH 200V 70A TO268

IXFT70N20Q3 Datasheet
  • 1: $11.86000
  • 30: $9.72121
  • 120: $8.77264

APT24M120B2

MOSFET N-CH 1200V 24A T-MAX

APT24M120B2 Datasheet
  • 1: $11.90000
  • 10: $10.81955

IXTT440N055T2

MOSFET N-CH 55V 440A TO268

IXTT440N055T2 Datasheet
  • 1: $11.94000
  • 30: $9.79080
  • 120: $8.83560

SIHG73N60AEL-GE3

MOSFET N-CH 600V 69A TO247AC

SIHG73N60AEL-GE3 Datasheet
  • 1: $12.05000
  • 10: $11.00167
  • 100: $9.42317

IXTA80N075L2

MOSFET N-CH 75V 80A TO263AA

IXTA80N075L2 Datasheet
  • 1: $12.21000
  • 50: $10.01220
  • 100: $9.03540

IXTA15N50L2

MOSFET N-CH 500V 15A TO263

IXTA15N50L2 Datasheet
  • 1: $12.33000
  • 50: $10.11060
  • 100: $9.12420

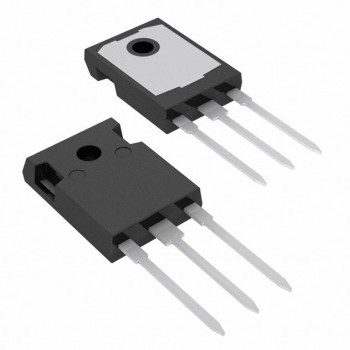

STWA70N60DM6
