TK31N60X,S1F
Toshiba Electronic Devices and Storage Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 600V 30.8A TO247
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet TK31N60X,S1F Datasheet
-
ECAD Model
- Share
In Stock: 135
Can ship immediately
Pricing:
- 1$5.68
- 30$4.56446
- 120$4.15857
- 510$3.36743
- 1,020$2.84
Quote It
Technical Details
- Series:DTMOSIV-H
- Package:Tube
- Part Status:Active
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):600 V
- Current - Continuous Drain (Id) @ 25°C:30.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):10V
- Rds On (Max) @ Id, Vgs:88mOhm @ 9.4A, 10V
- Vgs(th) (Max) @ Id:3.5V @ 1.5mA
- Gate Charge (Qg) (Max) @ Vgs:65 nC @ 10 V
- Vgs (Max):±30V
- Input Capacitance (Ciss) (Max) @ Vds:3000 pF @ 300 V
- FET Feature:Super Junction
- Power Dissipation (Max):230W (Tc)
- Operating Temperature:150°C (TJ)
- Mounting Type:Through Hole
- Supplier Device Package:TO-247
- Package / Case:TO-247-3
Related Products

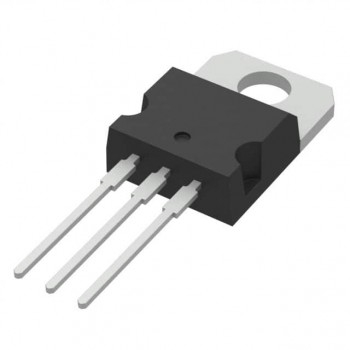

MOSFET N-CH 600V 30A TO220
