In Stock: 172

Can ship immediately

Pricing:
  • 1$0.0364

Quote It

Technical Details

  • Series:-
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • FET Type:N-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):60 V
  • Current - Continuous Drain (Id) @ 25°C:440mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
  • Rds On (Max) @ Id, Vgs:2Ohm @ 500mA, 10V
  • Vgs(th) (Max) @ Id:2V @ 250µA



  • Gate Charge (Qg) (Max) @ Vgs:-
  • Vgs (Max):±20V
  • Input Capacitance (Ciss) (Max) @ Vds:23.3 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):530mW (Ta)
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Supplier Device Package:SOT-23-3 (TO-236)
  • Package / Case:TO-236-3, SC-59, SOT-23-3

Related Products


2N7002KT7G

MOSFET N-CH 60V 380MA SOT23-3

  • 1: $0.22000
  • 14000: $0.16564

RM1A5N30S3AE

MOSFET N-CH 30V 1.5A/1.4A SOT323

  • 1: $0.03900

RM2P60S2

MOSFET P-CHANNEL 60V 1.9A SOT23

  • 1: $0.03900

BSS127

MOSFET N-CHANNEL 600V 21MA SOT23

  • 1: $0.03900

RM2305B

MOSFET P-CH 20V 3A/4.1A SOT23

  • 1: $0.03900

2N7000RLRMG

MOSFET N-CH 60V 200MA TO92-3

2N7000RLRMG Datasheet
  • 1: $0.04000

2N7002MTF

MOSFET N-CH 60V 115MA SOT23-3

2N7002MTF Datasheet
  • 1: $0.04000

PMZ1200UPE315

SMALL SIGNAL N-CHANNEL MOSFET

  • 1: $0.04000

PMZB950UPE315

P-CHANNEL MOSFET

  • 1: $0.04000

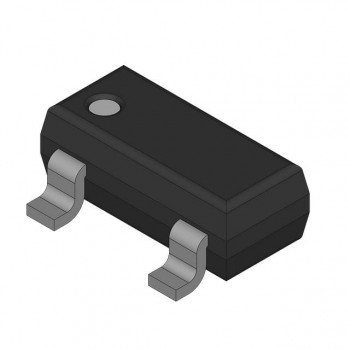

PMV100XPEA,215
