C3M0060065K
Wolfspeed - a Cree company
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSICFET N-CH 650V 37A TO247-4L
- CategoryTransistors - FETs, MOSFETs - Single
-
ECAD Model
- Share
In Stock: 181
Can ship immediately
Pricing:
- 1$8.88
Quote It
Technical Details
- Series:C3M™
- Package:Tube
- Part Status:Active
- FET Type:N-Channel
- Technology:SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss):650 V
- Current - Continuous Drain (Id) @ 25°C:37A (Tc)
- Drive Voltage (Max Rds On, Min Rds On):15V
- Rds On (Max) @ Id, Vgs:79mOhm @ 13.2A, 15V
- Vgs(th) (Max) @ Id:3.6V @ 5mA
- Gate Charge (Qg) (Max) @ Vgs:46 nC @ 15 V
- Vgs (Max):+15V, -4V
- Input Capacitance (Ciss) (Max) @ Vds:1020 pF @ 600 V
- FET Feature:-
- Power Dissipation (Max):150W (Tc)
- Operating Temperature:-40°C ~ 175°C (TJ)
- Mounting Type:Through Hole
- Supplier Device Package:TO-247-4L
- Package / Case:TO-247-4
Related Products

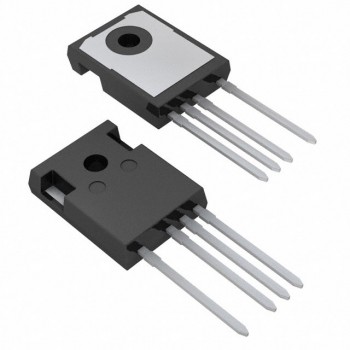

MOSFET N-CH 650V 68A TO247-4
