YJL2300A-F2-0000HF

Gallery image caption

Lifecycle status Active
RoHS RoHS Compliant
DescriptionN-CH MOSFET 20V 4.5A SOT-23-3L
CategoryTransistors - FETs, MOSFETs - Single
ECAD Model
Share

In Stock: 176

Can ship immediately

Pricing:

1$0.29

Technical Details

Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:25mOhm @ 4.5A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:7.1 nC @ 4.5 V
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:620 pF @ 10 V
FET Feature:-
Power Dissipation (Max):1W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23
Package / Case:TO-236-3, SC-59, SOT-23-3

Related Products

YJL2305A-F2-0000HF

P-CH MOSFET 15V 5.6A SOT-23-3L

1: $0.29000

2N7002-F2-0000HF

N-CH MOSFET 60V 0.34A SOT-23-3L

1: $0.29000

YJL2302A-F2-0000HF

N-CH MOSFET 20V 4.3A SOT-23-3L

1: $0.29000

BSS84-F2-0000HF

P-CH MOSFET 60V 0.17A SOT-23-3L

1: $0.29000

YJL05N04A-F2-0000HF

N-CH MOSFET 40V 5A SOT-23-3L

1: $0.29000

YJL3134KW-F2-0000HF

N-CH MOSFET 20V 0.75A SOT-323

1: $0.29000

YJL2302B-F2-0000HF

N-CH MOSFET 20V 3A SOT-23-3L

1: $0.29000

YJL2301C-F2-0000HF

P-CH MOSFET 20V 3.4A SOT-23-3L

1: $0.29000

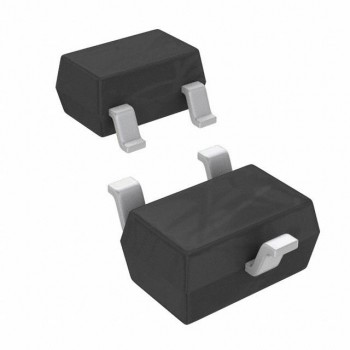

2N7002KW-F2-0000HF
