ZVN4306GVTC
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMOSFET N-CH 60V 2.1A SOT223
- CategoryTransistors - FETs, MOSFETs - Single
- Datasheet ZVN4306GVTC Datasheet
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- FET Type:N-Channel
- Technology:MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):60 V
- Current - Continuous Drain (Id) @ 25°C:2.1A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):5V, 10V
- Rds On (Max) @ Id, Vgs:330mOhm @ 3A, 10V
- Vgs(th) (Max) @ Id:3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs:-
- Vgs (Max):±20V
- Input Capacitance (Ciss) (Max) @ Vds:350 pF @ 25 V
- FET Feature:-
- Power Dissipation (Max):3W (Ta)
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

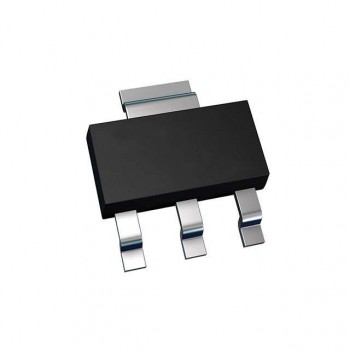

- Supplier Device Package:SOT-223
- Package / Case:TO-261-4, TO-261AA
