NSR05T30XV2T5G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE SCHOTTKY 30V 500MA SOD523
- CategoryDiodes - Rectifiers - Single
- Datasheet NSR05T30XV2T5G Datasheet
-
ECAD Model
- Share
In Stock: 6,704
Can ship immediately
Pricing:
- 1$0.35
- 8,000$0.0532
- 16,000$0.04556
- 24,000$0.04302
- 56,000$0.04047
- 200,000$0.03793
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Diode Type:Schottky
- Voltage - DC Reverse (Vr) (Max):30 V
- Current - Average Rectified (Io):500mA (DC)
- Voltage - Forward (Vf) (Max) @ If:450 mV @ 500 mA
- Speed:Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr):23 ns
- Current - Reverse Leakage @ Vr:170 µA @ 30 V
- Capacitance @ Vr, F:85pF @ 1V, 1MHz
- Mounting Type:Surface Mount
- Package / Case:SC-79, SOD-523
- Supplier Device Package:SOD-523
- Operating Temperature - Junction:-55°C ~ 150°C

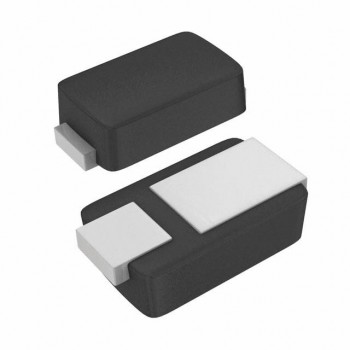

Related Products
