In Stock: 154

Can ship immediately

Pricing:
  • 1$0.58
  • 3,000$0.19264
  • 6,000$0.18021
  • 15,000$0.174

Quote It

Technical Details

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Diode Type:Schottky
  • Voltage - DC Reverse (Vr) (Max):20 V
  • Current - Average Rectified (Io):5A
  • Voltage - Forward (Vf) (Max) @ If:550 mV @ 5 A
  • Speed:Fast Recovery =< 500ns, > 200mA (Io)



  • Reverse Recovery Time (trr):-
  • Current - Reverse Leakage @ Vr:500 µA @ 20 V
  • Capacitance @ Vr, F:300pF @ 4V, 1MHz
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AB, SMC
  • Supplier Device Package:SMC
  • Operating Temperature - Junction:-55°C ~ 150°C

Related Products


S5MC-13-F

DIODE GEN PURP 1KV 5A SMC

S5MC-13-F Datasheet
  • 1: $0.58000
  • 3000: $0.21750
  • 6000: $0.20507

ZHCS1000TA

DIODE SCHOTTKY 40V 1A SOT23-3

ZHCS1000TA Datasheet
  • 1: $0.60000
  • 3000: $0.22629
  • 6000: $0.21336

SS26-E3/52T

DIODE SCHOTTKY 60V 2A DO214AA

SS26-E3/52T Datasheet
  • 1: $0.53000
  • 750: $0.22576
  • 1500: $0.17426

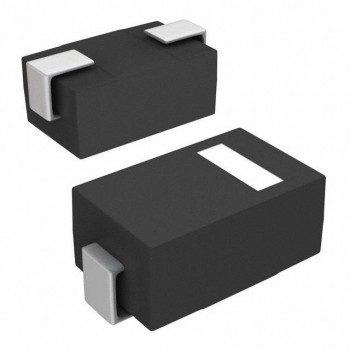

EGF1T-E3/67A

DIODE GEN PURP 1.3KV 1A DO214BA

EGF1T-E3/67A Datasheet
  • 1: $0.57000
  • 1500: $0.20948
  • 3000: $0.19100

SBR3U40P1-7

DIODE SBR 40V 3A POWERDI123

SBR3U40P1-7 Datasheet
  • 1: $0.63000
  • 3000: $0.23731
  • 6000: $0.22375

SB560-E3/54

DIODE SCHOTTKY 60V 5A DO201AD

SB560-E3/54 Datasheet
  • 1: $0.58000
  • 1400: $0.24187
  • 2800: $0.22307

DFLS1200-7

DIODE SCHOTTKY 200V POWERDI123

DFLS1200-7 Datasheet
  • 1: $0.65000
  • 3000: $0.24375
  • 6000: $0.22982

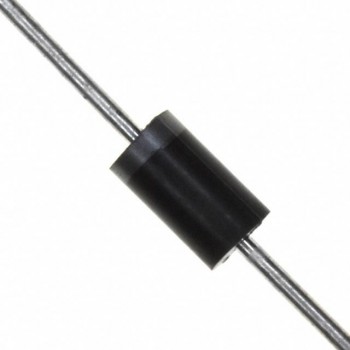

UF5408-E3/54
