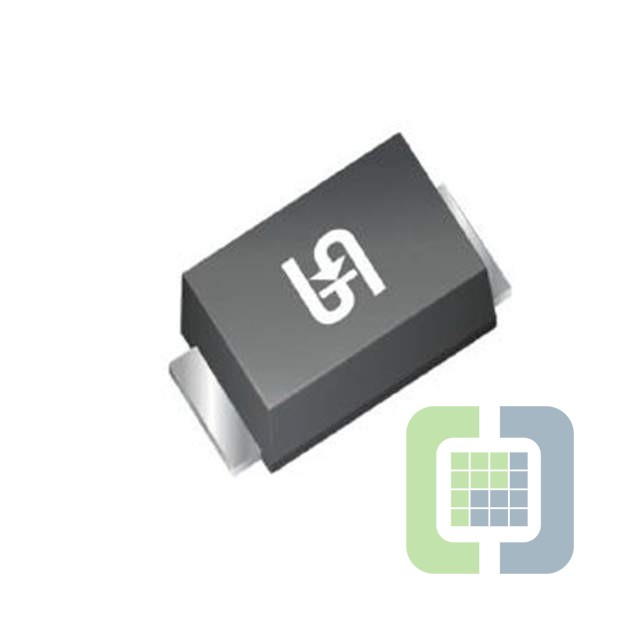

RS1KLHRFG

Technical Details

• Series:Automotive, AEC-Q101
• Package:Tape & Reel (TR)
• Part Status:Active
• Diode Type:Standard
• Voltage - DC Reverse (Vr) (Max):800 V
• Current - Average Rectified (Io):800mA
• Voltage - Forward (Vf) (Max) @ If:1.3 V @ 800 mA
• Speed:Fast Recovery =< 500ns, > 200mA (Io)

• Reverse Recovery Time (trr):500 ns
• Current - Reverse Leakage @ Vr:5 µA @ 800 V
• Capacitance @ Vr, F:10pF @ 4V, 1MHz
• Mounting Type:Surface Mount
• Package / Case:DO-219AB
• Supplier Device Package:Sub SMA
• Operating Temperature - Junction:-55°C ~ 150°C
