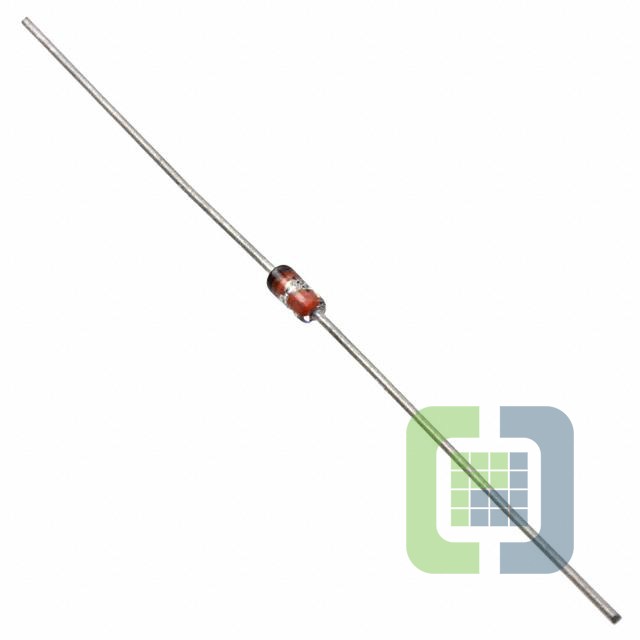

JANTX1N4109-1

Technical Details

• Series:Military, MIL-PRF-19500/435
• Package:Bulk
• Part Status:Active
• Voltage - Zener (Nom) (Vz):15 V
• Tolerance:±5%
• Power - Max:500 mW
• Impedance (Max) (Zzt):100 Ohms

• Current - Reverse Leakage @ Vr:50 nA @ 11.4 V
• Voltage - Forward (Vf) (Max) @ If:1.1 V @ 200 mA
• Operating Temperature:-65°C ~ 175°C
• Mounting Type:Through Hole
• Package / Case:DO-204AH, DO-35, Axial
• Supplier Device Package:DO-35 (DO-204AH)
