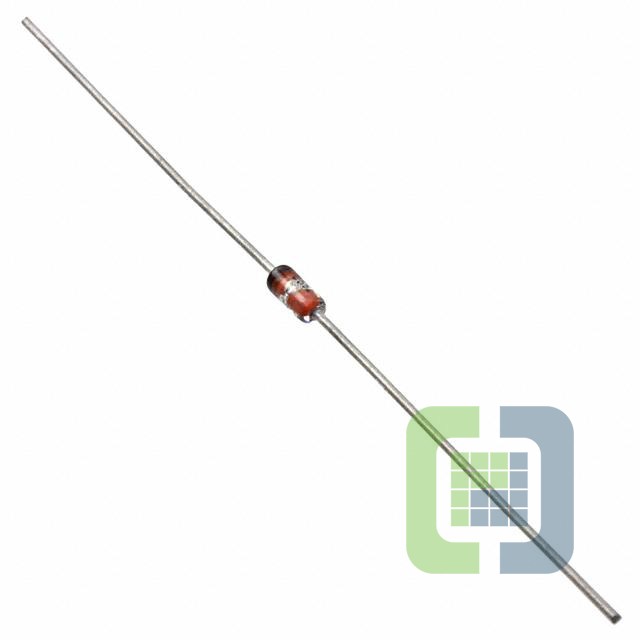

JANTX1N5542B-1
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE ZENER 22V 500MW DO35
- CategoryDiodes - Zener - Single
- Datasheet JANTX1N5542B-1 Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
- 1$6.12299
- 107$6.12299
Quote It
Technical Details
- Series:Military, MIL-PRF-19500/437
- Package:Bulk
- Part Status:Active
- Voltage - Zener (Nom) (Vz):22 V
- Tolerance:±5%
- Power - Max:500 mW
- Impedance (Max) (Zzt):100 Ohms
- Current - Reverse Leakage @ Vr:10 nA @ 19.8 V
- Voltage - Forward (Vf) (Max) @ If:1.1 V @ 200 mA
- Operating Temperature:-65°C ~ 175°C
- Mounting Type:Through Hole
- Package / Case:DO-204AH, DO-35, Axial
- Supplier Device Package:DO-35 (DO-204AH)
