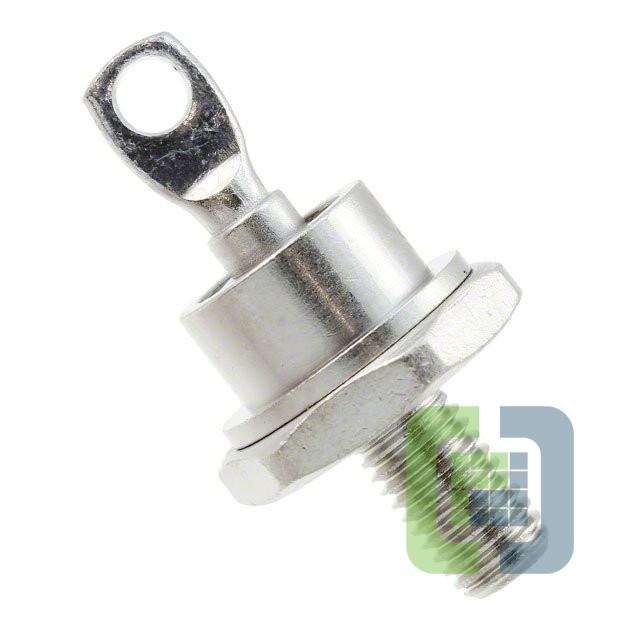

1N3314B
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE ZENER 15V 50W DO5
- CategoryDiodes - Zener - Single
- Datasheet 1N3314B Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
- 1$34.0002
- 100$30.87044
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Voltage - Zener (Nom) (Vz):15 V
- Tolerance:±5%
- Power - Max:50 W
- Impedance (Max) (Zzt):1.4 Ohms
- Current - Reverse Leakage @ Vr:10 µA @ 11.4 V
- Voltage - Forward (Vf) (Max) @ If:1.5 V @ 10 A
- Operating Temperature:-65°C ~ 175°C
- Mounting Type:Chassis, Stud Mount
- Package / Case:DO-203AB, DO-5, Stud
- Supplier Device Package:DO-5
