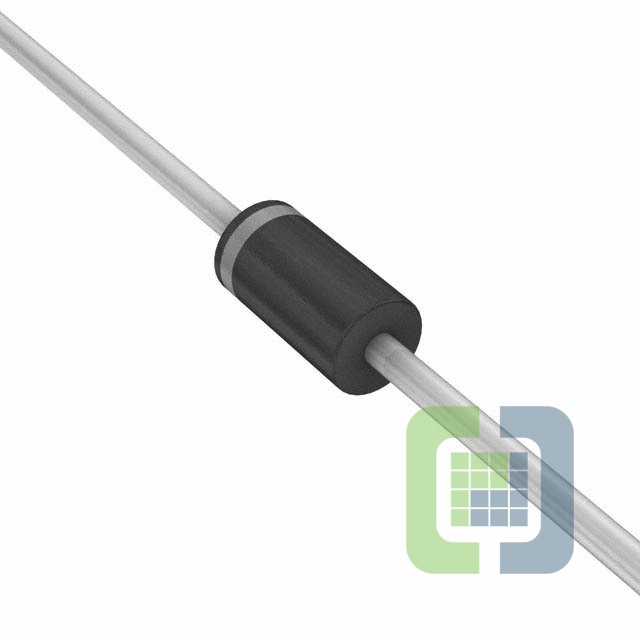

1N4746ATA
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDIODE ZENER 18V 1W DO41
- CategoryDiodes - Zener - Single
- Datasheet 1N4746ATA Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$0.02
- 2,500$0.02
- 5,000$0.01739
- 12,500$0.01478
- 25,000$0.01391
- 62,500$0.01304
- 125,000$0.0113
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Voltage - Zener (Nom) (Vz):18 V
- Tolerance:±5%
- Power - Max:1 W
- Impedance (Max) (Zzt):20 Ohms
- Current - Reverse Leakage @ Vr:5 µA @ 13.7 V
- Voltage - Forward (Vf) (Max) @ If:1.2 V @ 200 mA
- Operating Temperature:200°C
- Mounting Type:Through Hole
- Package / Case:DO-204AL, DO-41, Axial
- Supplier Device Package:DO-41
