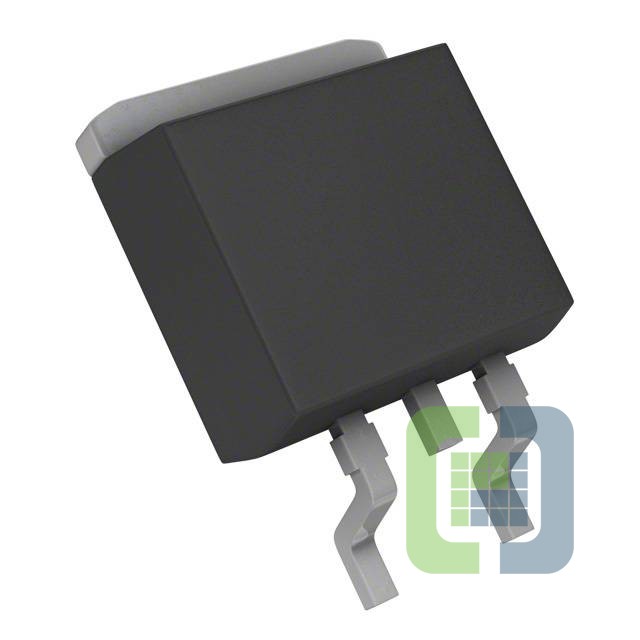

BA7810FP-E2
ROHM Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 10V 1A TO252-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet BA7810FP-E2 Datasheet
-
ECAD Model
- Share
In Stock: 2,849
Can ship immediately
Pricing:
- 1$1.16
- 2,000$0.4634
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):25V
- Voltage - Output (Min/Fixed):10V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 1A (Typ)
- Current - Output:1A
- Current - Quiescent (Iq):8 mA
- Current - Supply (Max):800 µA
- PSRR:64dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:TO-252-3
