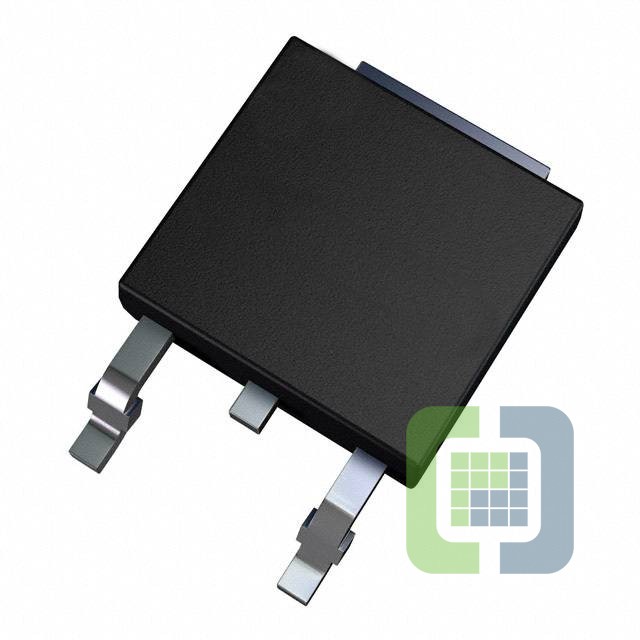

LM1117IDTX-3.3/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 800MA TO252-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 2,758
Can ship immediately
Pricing:
- 1$1.52
- 2,500$0.609
- 5,000$0.57855
- 12,500$0.5568
Quote It
Technical Details
- Series:LM1117-3.3
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.2V @ 800mA
- Current - Output:800mA
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):10 mA
- PSRR:75dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:TO-252-3
