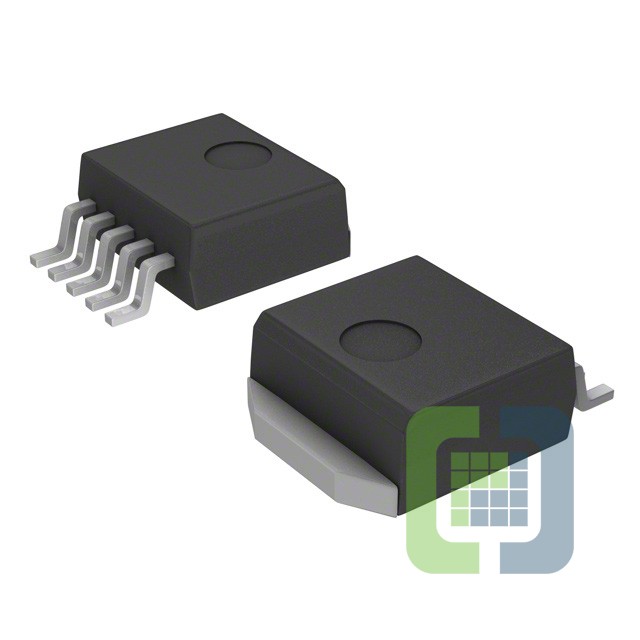

NCV4275ADS50R4G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 450MA D2PAK-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV4275ADS50R4G Datasheet
-
ECAD Model
- Share
In Stock: 1,903,333,721
Can ship immediately
Pricing:
- 1$1.32
- 800$0.855
- 1,600$0.675
- 2,400$0.63
- 5,600$0.5985
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):42V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 300mA
- Current - Output:450mA
- Current - Quiescent (Iq):200 µA
- Current - Supply (Max):35 mA
- PSRR:60dB (100Hz)
- Control Features:Reset
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:D2PAK-5
