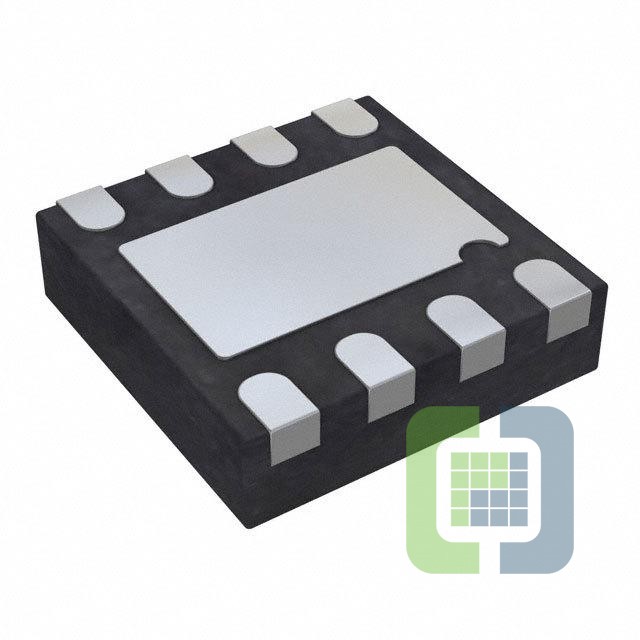

ADM7171ACPZ-5.0-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 1A 8LFCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADM7171ACPZ-5.0-R7 Datasheet
-
ECAD Model
- Share
In Stock: 2,766
Can ship immediately
Pricing:
- 1$3.34
- 1,500$1.78415
- 3,000$1.69495
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6.5V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:1A
- Current - Quiescent (Iq):2 mA
- Current - Supply (Max):6.3 mA
- PSRR:-
- Control Features:Enable, Soft Start
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-WFDFN Exposed Pad, CSP
- Supplier Device Package:8-LFCSP-WD (3x3)
