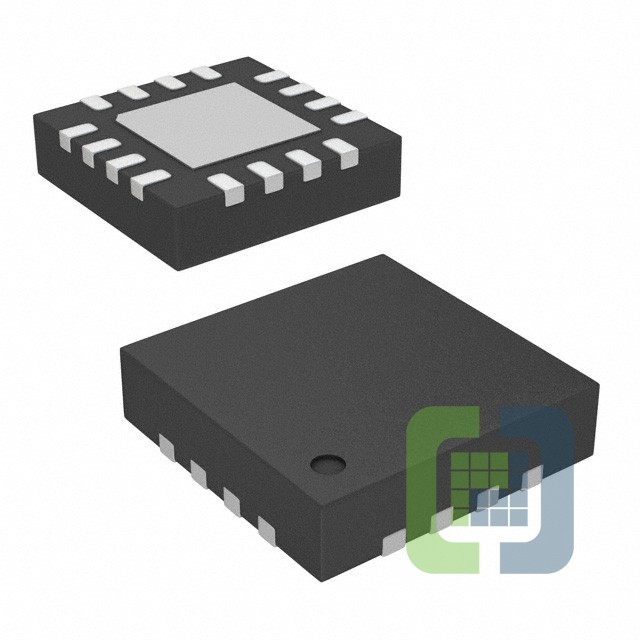

ADP1762ACPZ-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 2A 16LFCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP1762ACPZ-R7 Datasheet
-
ECAD Model
- Share
In Stock: 3,973
Can ship immediately
Pricing:
- 1$9.21
- 1,500$5.27457
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):1.98V
- Voltage - Output (Min/Fixed):0.5V
- Voltage - Output (Max):1.5V
- Voltage Dropout (Max):0.095V @ 2A
- Current - Output:2A
- Current - Quiescent (Iq):8 mA
- Current - Supply (Max):14 mA
- PSRR:63dB ~ 34dB (10kHz ~ 1MHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Current Limit, Thermal Overload
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-WFQFN Exposed Pad
- Supplier Device Package:16-LFCSP-WQ (3x3)
