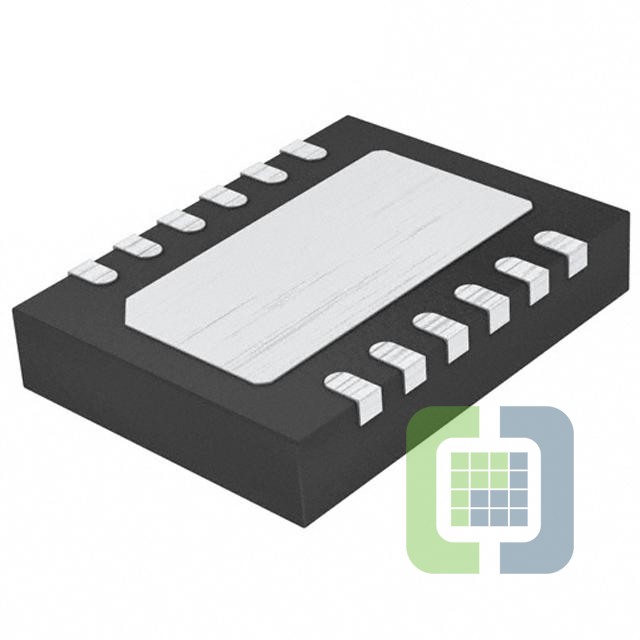

LT1763MPDE-2.5#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.5V 500MA 12DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT1763MPDE-2.5#PBF Datasheet
-
ECAD Model
- Share
In Stock: 749
Can ship immediately
Pricing:
- 1$12.58
- 25$8.35152
- 100$6.90547
- 250$6.56022
- 500$6.41223
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):20V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.45V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:65dB (120Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity
- Operating Temperature:-55°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:12-WFDFN Exposed Pad
- Supplier Device Package:12-DFN (4x3)
