AP2120N-2.5TRG1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.5V 150MA SOT23
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP2120N-2.5TRG1 Datasheet
-
ECAD Model
- Share
In Stock: 12,935
Can ship immediately
Pricing:
- 1$0.38
- 3,000$0.0662
- 6,000$0.05958
- 15,000$0.05296
- 30,000$0.04965
- 75,000$0.04402
- 150,000$0.04237
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):50 µA
- Current - Supply (Max):-
- PSRR:65dB (1kHz)
- Control Features:-
- Protection Features:Over Current
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount

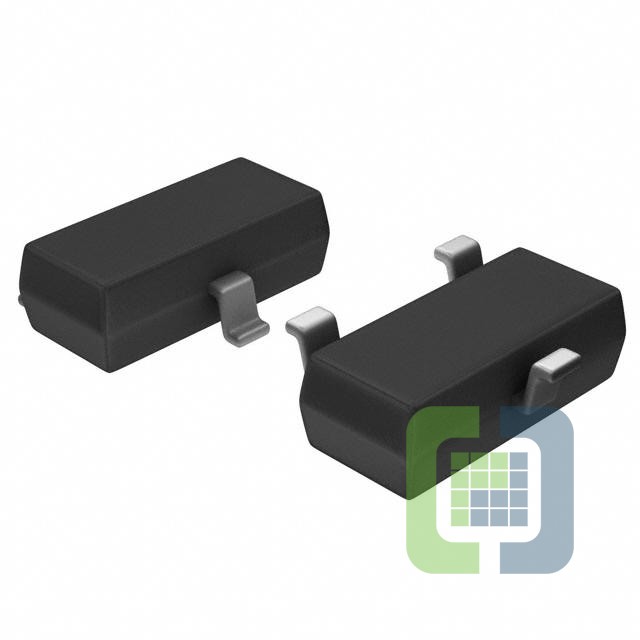

- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:SOT-23
