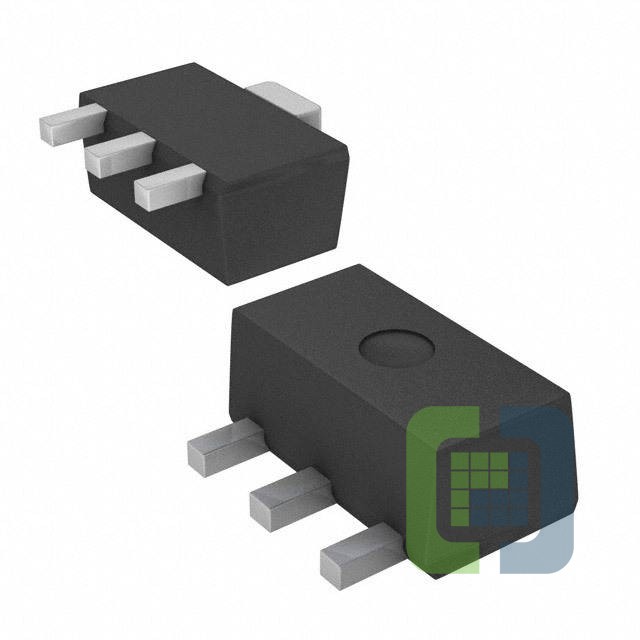

AS78L05RTR-E1
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 100MA SOT89-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AS78L05RTR-E1 Datasheet
-
ECAD Model
- Share
In Stock: 14,766
Can ship immediately
Pricing:
- 1$0.39
- 1,000$0.09
- 2,000$0.081
- 5,000$0.0765
- 10,000$0.06975
- 25,000$0.06525
- 50,000$0.0585
- 100,000$0.0576
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):30V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.8V @ 100mA (Typ)
- Current - Output:100mA
- Current - Quiescent (Iq):5.5 mA
- Current - Supply (Max):-
- PSRR:62dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-243AA
- Supplier Device Package:SOT-89-3
