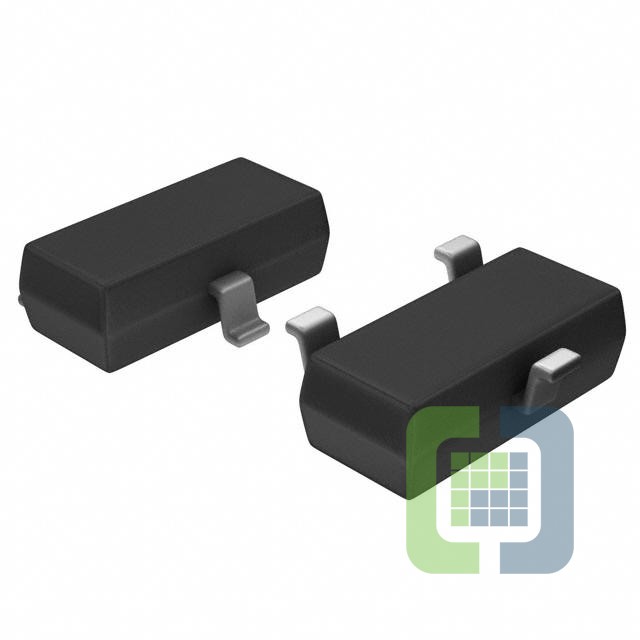

AP7313-15SAG-7
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.5V 150MA SOT23-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP7313-15SAG-7 Datasheet
-
ECAD Model
- Share
In Stock: 6,530
Can ship immediately
Pricing:
- 1$0.42
- 3,000$0.1122
- 6,000$0.1054
- 15,000$0.0986
- 30,000$0.09044
- 75,000$0.08704
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:150mA
- Current - Quiescent (Iq):75 µA
- Current - Supply (Max):85 µA
- PSRR:65dB (100Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:SOT-23-3
