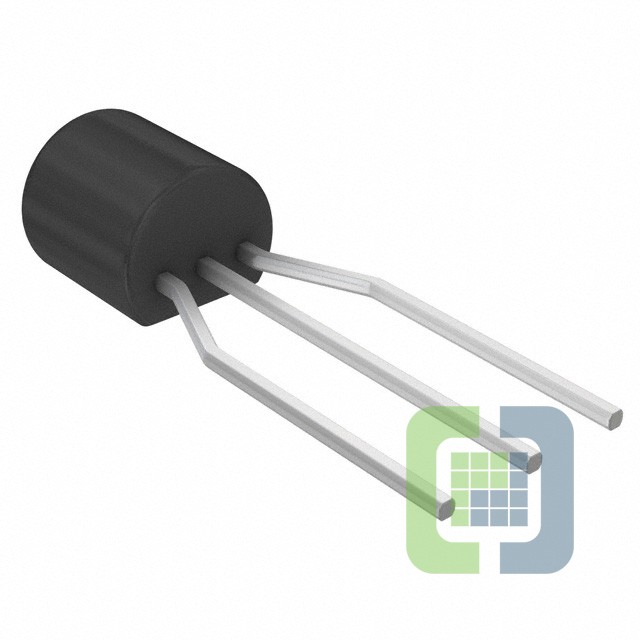

LM317LZ-AP
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 100MA TO92-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LM317LZ-AP Datasheet
-
ECAD Model
- Share
In Stock: 6,453
Can ship immediately
Pricing:
- 1$0.45
- 2,000$0.13153
- 6,000$0.12304
- 10,000$0.11456
- 50,000$0.10607
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):37V
- Voltage Dropout (Max):-
- Current - Output:100mA
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:80dB ~ 65dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Supplier Device Package:TO-92-3
