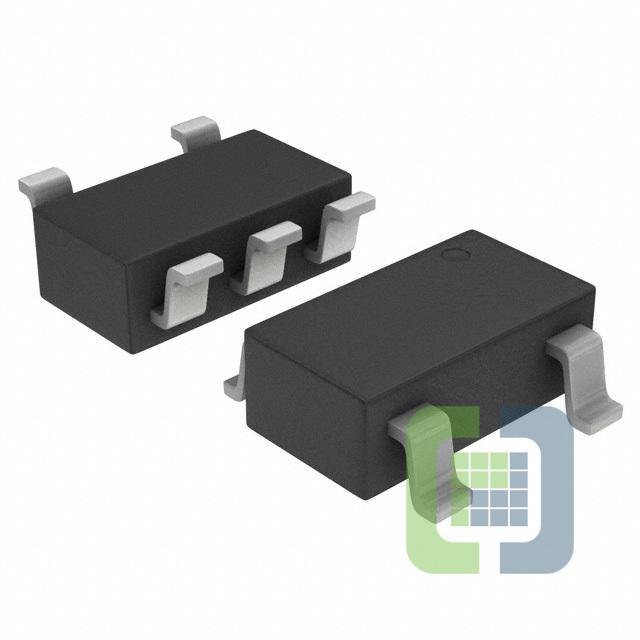

NCP603SNADJT1G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 300MA 5TSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP603SNADJT1G Datasheet
-
ECAD Model
- Share
In Stock: 6,493
Can ship immediately
Pricing:
- 1$0.56
- 3,000$0.18755
- 6,000$0.17545
- 15,000$0.16335
- 30,000$0.15488
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):5V
- Voltage Dropout (Max):0.48V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):180 µA
- Current - Supply (Max):-
- PSRR:62dB ~ 38dB (120Hz ~ 10kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Transient Voltage
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:5-TSOP
