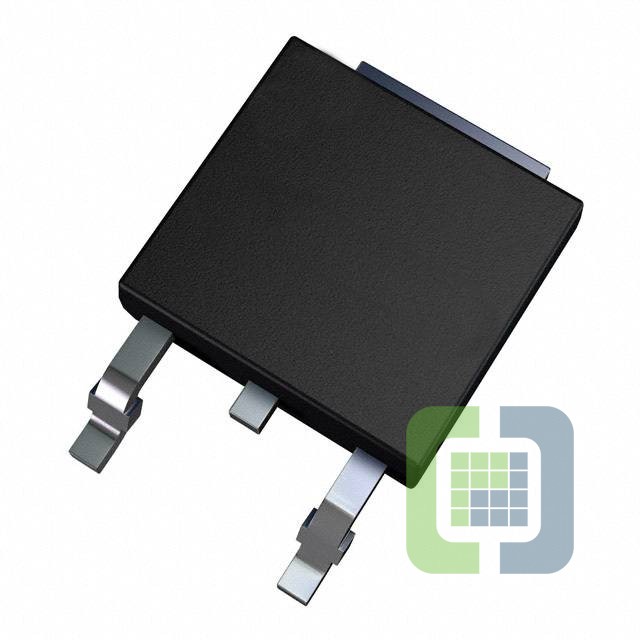

LF120ABDT-TR
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 12V 500MA DPAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LF120ABDT-TR Datasheet
-
ECAD Model
- Share
In Stock: 11,929
Can ship immediately
Pricing:
- 1$0.83
- 2,500$0.26774
- 5,000$0.24928
- 12,500$0.24005
- 25,000$0.23081
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):12V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.7V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):1.5 mA
- Current - Supply (Max):12 mA
- PSRR:69dB ~ 54dB (120Hz ~ 10kHz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:DPAK
