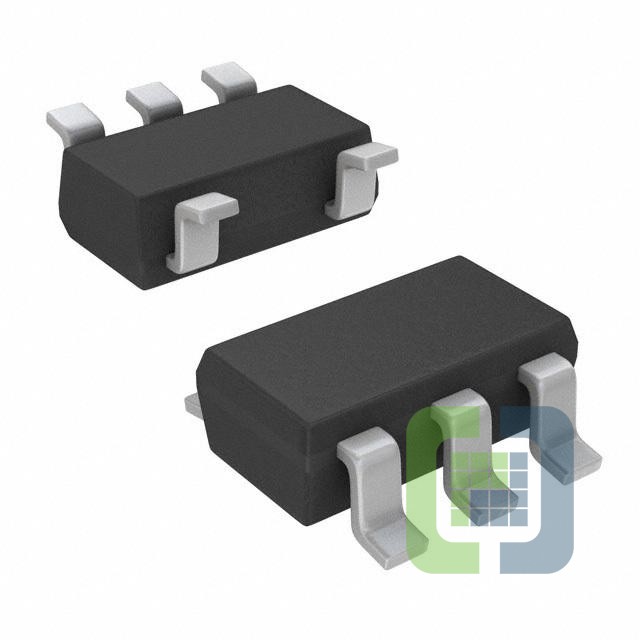

MCP1755T-5002E/OT
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 300MA SOT23-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MCP1755T-5002E/OT Datasheet
-
ECAD Model
- Share
In Stock: 2,088
Can ship immediately
Pricing:
- 1$0.54
- 3,000$0.4017
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):100 µA
- Current - Supply (Max):400 µA
- PSRR:80dB (1kHz)
- Control Features:Enable, Power Good
- Protection Features:Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
