NCP1117DTAG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A DPAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP1117DTAG Datasheet
-
ECAD Model
- Share
In Stock: 10,976,299
Can ship immediately
Pricing:
- 1$0.52
- 75$0.41284
- 150$0.33028
- 525$0.25948
- 1,050$0.20051
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):20V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):18.8V
- Voltage Dropout (Max):1.2V @ 800mA
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:73dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:DPAK
Related Products

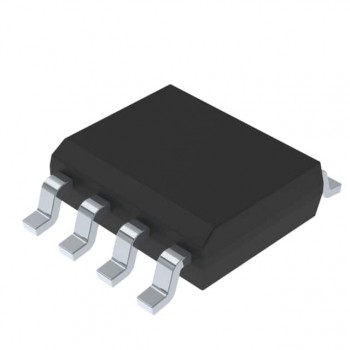

IC REG LIN POS ADJ 100MA 8SOIC
- 1: $0.52000
- 10: $0.44571
- 75: $0.41600

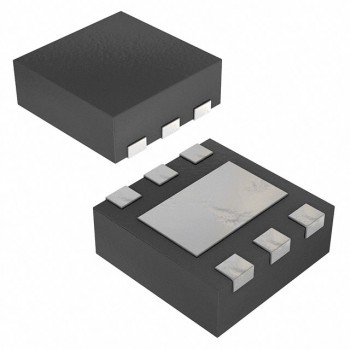

IC REG LINEAR 3V 500MA 6WSON
- 1: $1.23000
- 3000: $0.49280
- 6000: $0.46816

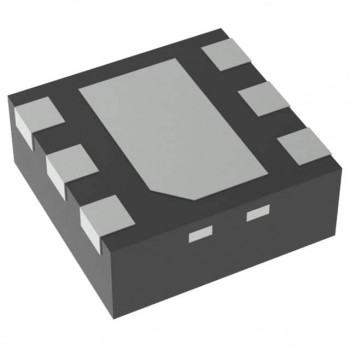

IC REG LINEAR 5V 500MA 6WSON
