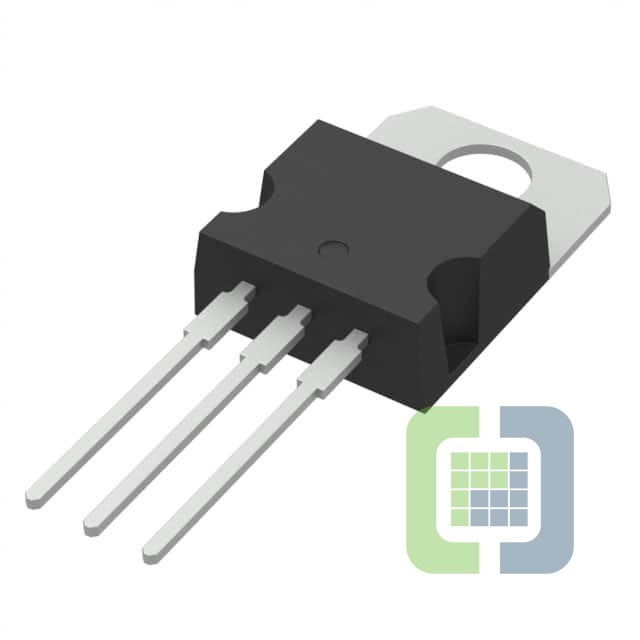

LM317BT
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1.5A TO220
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LM317BT Datasheet
-
ECAD Model
- Share
In Stock: 6,669
Can ship immediately
Pricing:
- 1$0.56
- 5,000$0.15467
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.2V
- Voltage - Output (Max):37V
- Voltage Dropout (Max):-
- Current - Output:1.5A
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:80dB ~ 65dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-3
- Supplier Device Package:TO-220
Related Products
IC REG LINEAR 5V 100MA TO92-3
- 1: $0.56000
- 10: $0.48204
- 100: $0.35972
IC REG LINEAR 3.3V 30MA SCT595-5
TLE42962GV33HTSA1 Datasheet- 1: $1.22000
- 3000: $0.49551
- 6000: $0.47191
IC REG LINEAR 3.3V 50MA SOT23-5
- 1: $1.32000
- 3000: $0.52920
- 6000: $0.50274

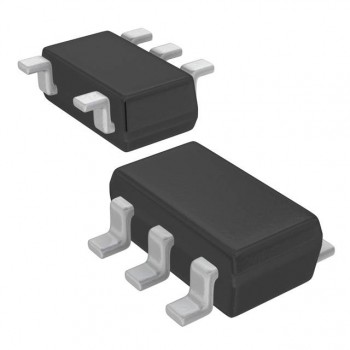

IC REG LINEAR 3.3V 150MA SOT23-5
- 1: $1.33000
- 3000: $0.53200
- 6000: $0.50540
IC REG LINEAR 3.3V 1A SOT89-5
- 1: $1.26000

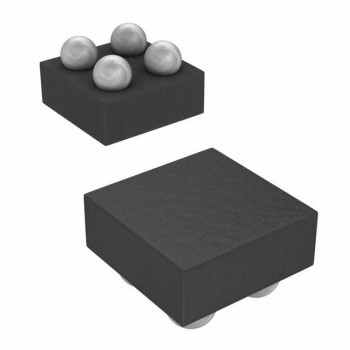

IC REG LINEAR 1.8V 150MA 4DSBGA
