MC7805ACTG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 1A TO220AB
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MC7805ACTG Datasheet
-
ECAD Model
- Share
In Stock: 2,306
Can ship immediately
Pricing:
- 1$0.62
- 50$0.51212
- 100$0.41798
- 500$0.33046
- 1,000$0.26437
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 1A (Typ)
- Current - Output:1A
- Current - Quiescent (Iq):6 mA
- Current - Supply (Max):-
- PSRR:83dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Through Hole

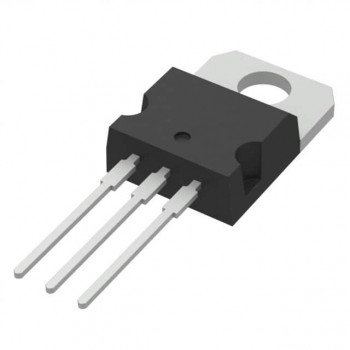

- Package / Case:TO-220-3
- Supplier Device Package:TO-220AB
