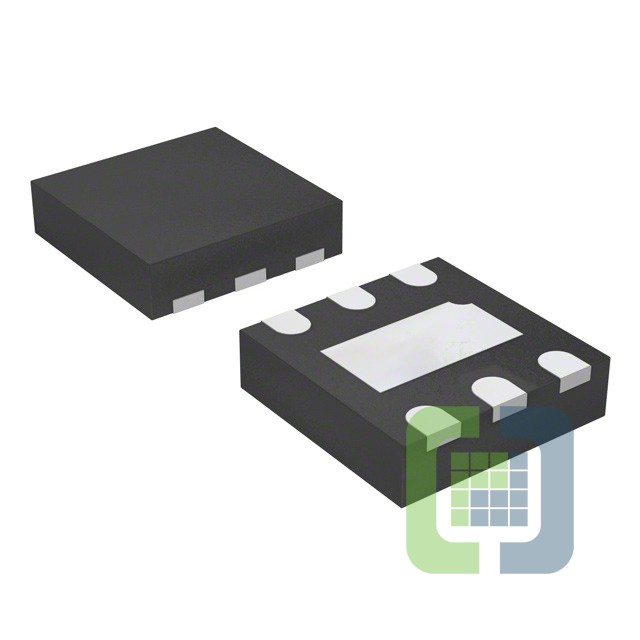

ADM7160ACPZN3.3-R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 3.3V 200MA 6LFCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADM7160ACPZN3.3-R7 Datasheet
-
ECAD Model
- Share
In Stock: 4,123
Can ship immediately
Pricing:
- 1$1.57
- 3,000$0.67499
- 6,000$0.64125
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.23V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):20 µA
- Current - Supply (Max):350 µA
- PSRR:54dB ~ 43dB (100kHz ~ 1MHz)
- Control Features:Enable
- Protection Features:Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:6-UDFN Exposed Pad, CSP
- Supplier Device Package:6-LFCSP-UD (2x2)
Related Products
IC REG LINEAR 5V 150MA SOT89-5
- 1: $1.50000
IC REG LINEAR 3.3V 500MA TO252-3
- 1: $1.61000
- 2500: $0.64540
- 5000: $0.61313

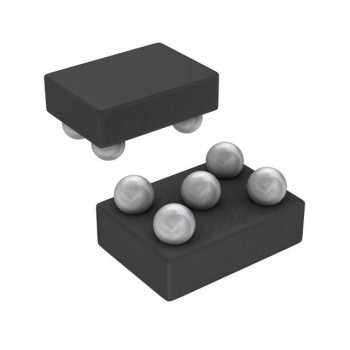

IC REG LINEAR 2.5V 200MA 5DSBGA
