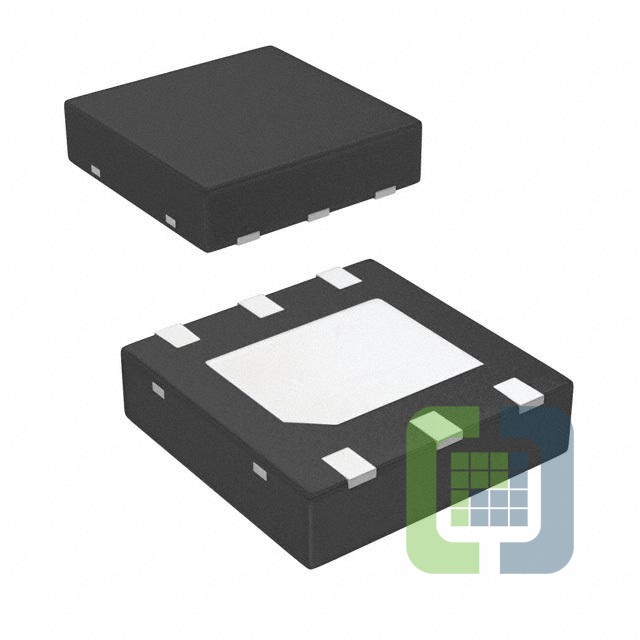

LP38690SD-ADJ/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A 6WSON
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 14,491
Can ship immediately
Pricing:
- 1$1.6
- 1,000$0.687
- 2,000$0.6412
- 5,000$0.60914
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):10V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):9V
- Voltage Dropout (Max):1.6V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):55 µA
- Current - Supply (Max):100 µA
- PSRR:55dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:6-WDFN Exposed Pad
- Supplier Device Package:6-WSON (3x3)
Related Products
IC REG LINEAR 3.3V 150MA SOT23-5
- 1: $1.13000
- 250: $0.63212
- 500: $0.55860
IC REG LINEAR 15V 100MA TO92-3
- 1: $0.74000
- 10: $0.65528
- 100: $0.50202

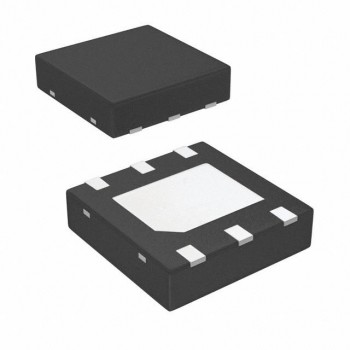

IC REG LINEAR 5V 1A 6WSON
- 1: $1.63000
- 1000: $0.69900
- 2000: $0.65240
IC REG LINEAR 5V 1A 6WSON
- 1: $1.63000
- 1000: $0.69900
- 2000: $0.65240

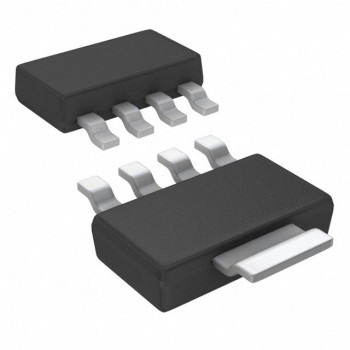

IC REG LINEAR 5V 1A SOT223-5
