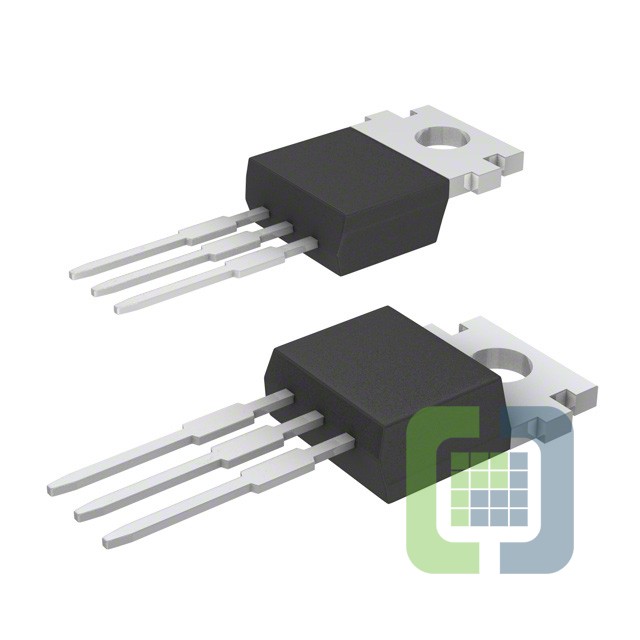

TL780-05KCSE3
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 1.5A TO220-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 2,134
Can ship immediately
Pricing:
- 1$0.87
- 10$0.76074
- 50$0.71502
- 100$0.58351
- 500$0.4613
- 1,000$0.36904
- 2,500$0.33444
- 5,000$0.31138
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):25V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):2V @ 1A
- Current - Output:1.5A
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:85dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:TO-220-3
- Supplier Device Package:TO-220-3
