REG1117A/2K5
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 1A SOT223-4
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 3,264
Can ship immediately
Pricing:
- 1$2.34
- 2,500$1.0098
- 5,000$0.9724
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):13.5V
- Voltage Dropout (Max):1.55V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:62dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-261-4, TO-261AA
- Supplier Device Package:SOT-223-4
Related Products
IC REG LINEAR 1.2V 500MA 8SON
- 1: $1.74000
- 250: $1.06640
- 500: $0.94240
IC REG LINEAR POS ADJ 500MA 8SON
- 1: $1.74000
- 250: $1.06640
- 500: $0.94240

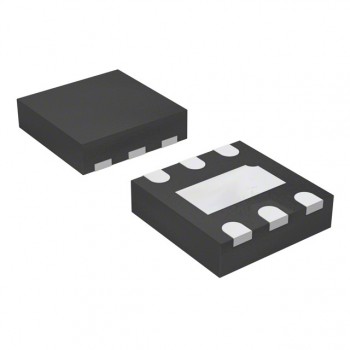

IC REG LINEAR 5V 400MA 6DFN
- 1: $2.03000

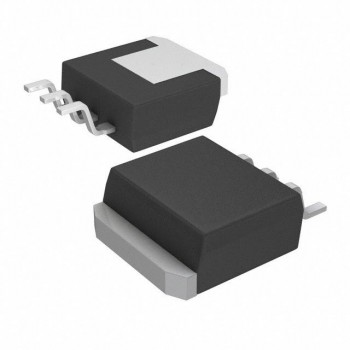

IC REG LIN 15V 1A DDPAK/TO263-3
