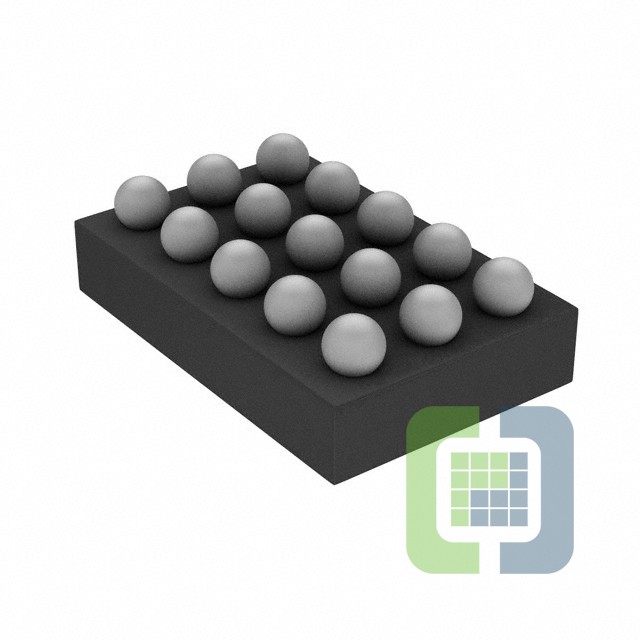

MAX15101EWL+T
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A 15WLP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MAX15101EWL+T Datasheet
-
ECAD Model
- Share
In Stock: 305,757,675
Can ship immediately
Pricing:
- 1$2.44
- 2,500$1.09988
- 5,000$1.05853
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.6V
- Voltage - Output (Max):5.2V
- Voltage Dropout (Max):0.1V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):3.5 mA
- Current - Supply (Max):-
- PSRR:40dB (100kHz)
- Control Features:Enable, Power Good, Soft Start
- Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:15-WFBGA, WLBGA
- Supplier Device Package:15-WLP (1.58x2.66)
