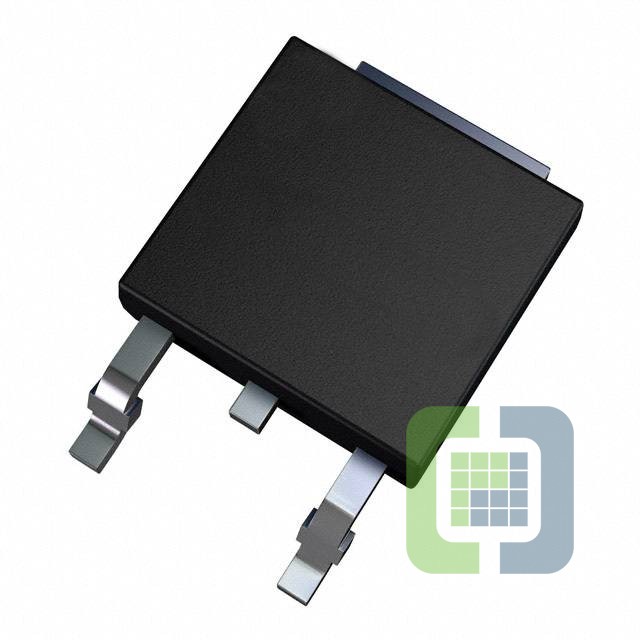

LM1117DT-ADJ/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 800MA TO252-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 1,517
Can ship immediately
Pricing:
- 1$1.57
- 10$1.41088
- 75$1.33139
- 150$1.13429
- 525$0.93192
- 1,050$0.77216
- 2,550$0.71891
- 5,025$0.69229
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):13.8V
- Voltage Dropout (Max):1.2V @ 800mA
- Current - Output:800mA
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):10 mA
- PSRR:75dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:TO-252-3
Related Products
IC REG LINEAR 5V 400MA 8VSSOP
- 1: $2.94000
- 2500: $1.39251
- 5000: $1.34016
IC REG LINEAR 3.3V 1A 20HTSSOP
- 1: $2.95000
- 2000: $1.39783
- 6000: $1.34528
IC REG LINEAR 5V 500MA TO220-3
- 1: $1.60000
- 10: $1.43152
- 45: $1.35888

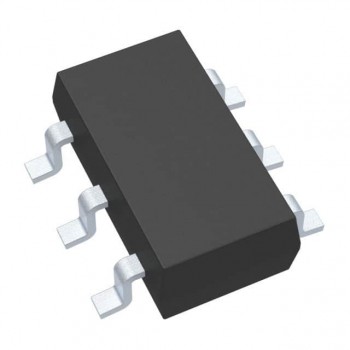

IC REG LINEAR 3V 400MA SOT23-5
- 1: $2.37000
- 250: $1.51800
- 500: $1.32826
IC REG LINEAR 2.5V 400MA SOT23-5
- 1: $2.37000
- 250: $1.51800
- 500: $1.32826

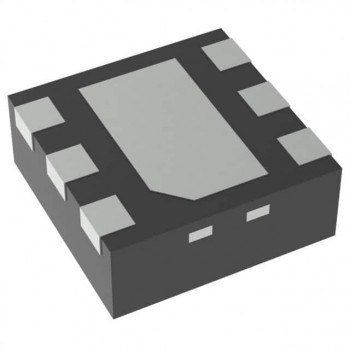

IC REG LINEAR POS ADJ 1A 6WSON
- 1: $2.37000
- 250: $1.51800
- 500: $1.32826

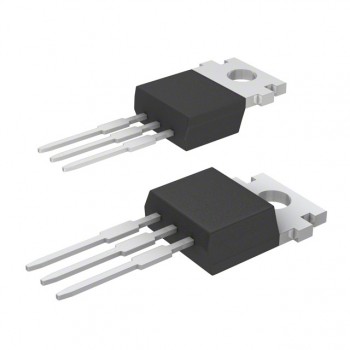

IC REG LINEAR 15V 1A TO220-3
