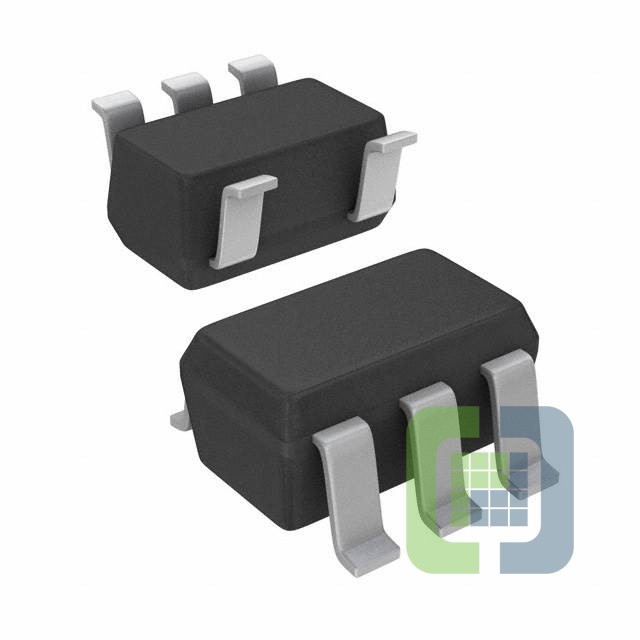

TPS72301DBVTG4
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN NEG ADJ 200MA SOT23-5
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 411
Can ship immediately
Pricing:
- 1$2.99
- 250$1.96656
- 500$1.76458
- 1,250$1.4882
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Negative
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):-10V
- Voltage - Output (Min/Fixed):-1.2V
- Voltage - Output (Max):-10V
- Voltage Dropout (Max):0.5V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):200 µA
- Current - Supply (Max):500 µA
- PSRR:65dB ~ 48dB (1kHz ~ 10kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:SC-74A, SOT-753
- Supplier Device Package:SOT-23-5
