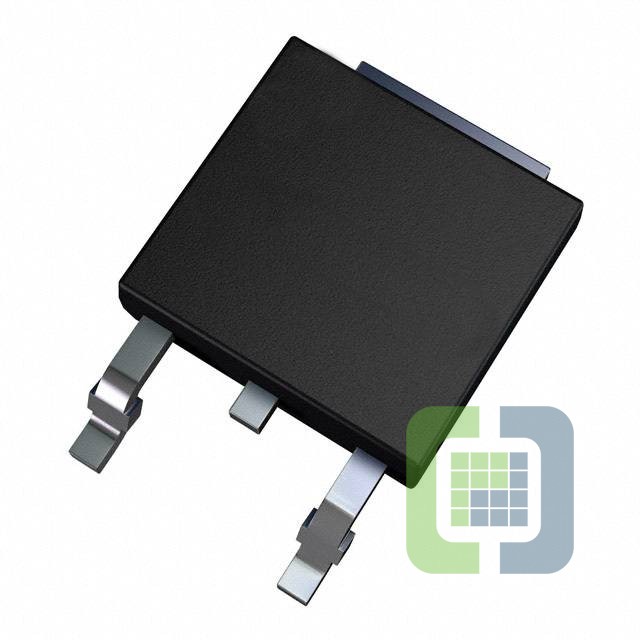

LM2936DT-5.0/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 50MA TO252-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 2,532
Can ship immediately
Pricing:
- 1$2.49
- 10$2.241
- 75$2.11424
- 150$1.80129
- 525$1.47995
- 1,050$1.22624
- 2,550$1.14168
- 5,025$1.09939
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.12V @ 50mA
- Current - Output:50mA
- Current - Quiescent (Iq):9 µA
- Current - Supply (Max):2.5 mA
- PSRR:60dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:TO-252-3
