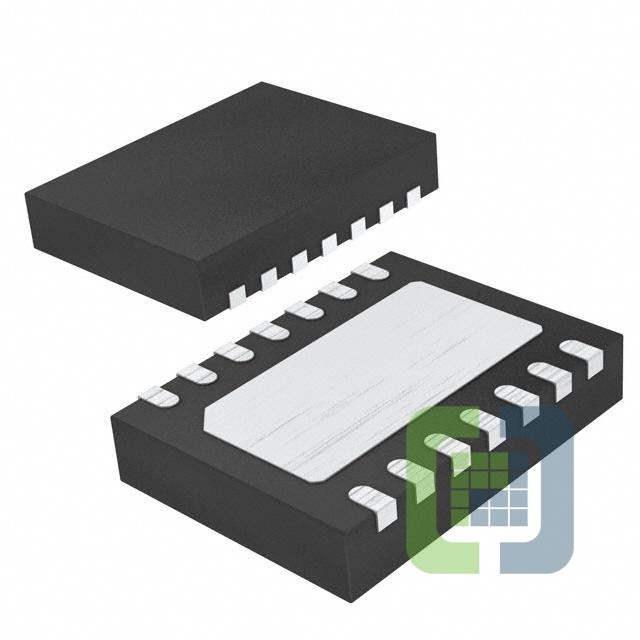

LT3091EDE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR NEG ADJ 1.5A 14DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LT3091EDE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 650
Can ship immediately
Pricing:
- 1$6.89
- 25$4.57591
- 100$3.78356
- 250$3.59441
- 500$3.51331
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Negative
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):-36V
- Voltage - Output (Min/Fixed):0V
- Voltage - Output (Max):-32V
- Voltage Dropout (Max):0.45V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):50.5 µA
- Current - Supply (Max):-
- PSRR:85dB ~ 20dB (120Hz ~ 1MHz)
- Control Features:Current Limit, Enable
- Protection Features:Over Current, Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:14-WFDFN Exposed Pad
- Supplier Device Package:14-DFN (4x3)
