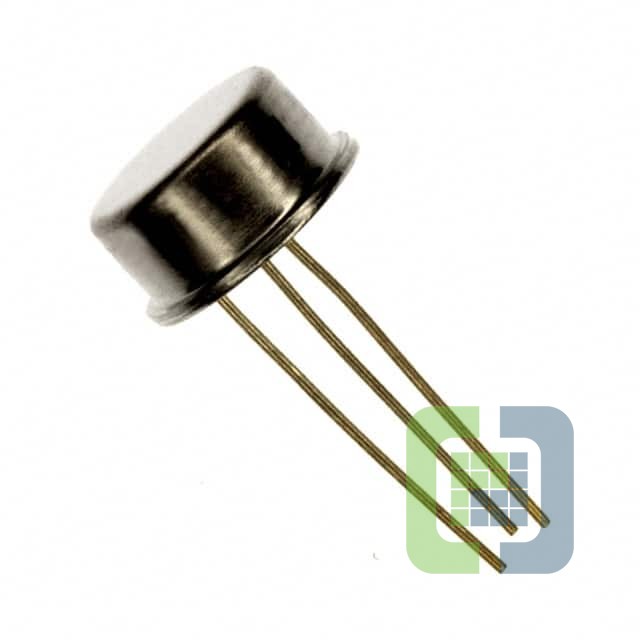

LM137H
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN NEG ADJ 1.5A TO39-3
- CategoryPMIC - Voltage Regulators - Linear
-
ECAD Model
- Share
In Stock: 414
Can ship immediately
Pricing:
- 1$18.89
- 10$17.3627
- 25$16.64305
- 100$14.66373
- 500$13.04447
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Configuration:Negative
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):-40V
- Voltage - Output (Min/Fixed):-1.2V
- Voltage - Output (Max):-37V
- Voltage Dropout (Max):-
- Current - Output:1.5A
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:66dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-55°C ~ 150°C
- Mounting Type:Through Hole
- Package / Case:TO-205AD, TO-39-3 Metal Can
- Supplier Device Package:TO-39-3
