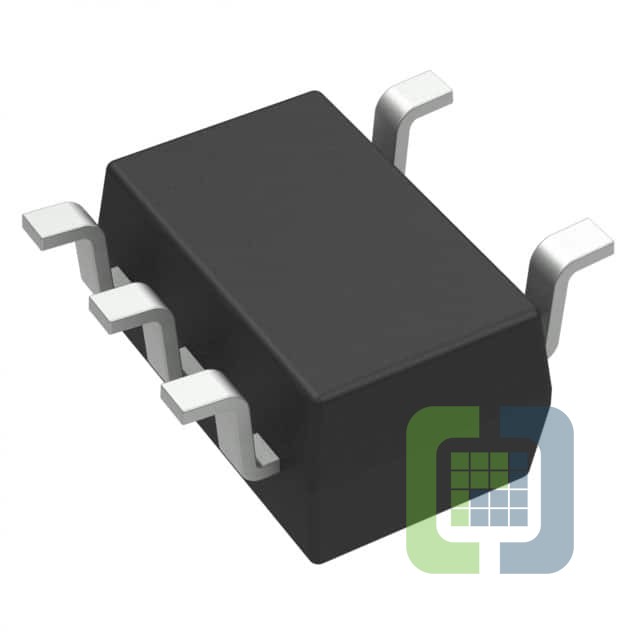

NCP114ASN150T1G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.5V 300MA 5TSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP114ASN150T1G Datasheet
-
ECAD Model
- Share
In Stock: 2,147,483,647
Can ship immediately
Pricing:
- 1$0.42
- 3,000$0.071
- 6,000$0.0639
- 15,000$0.0568
- 30,000$0.05325
- 75,000$0.04722
- 150,000$0.04544
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):1.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.46V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):95 µA
- Current - Supply (Max):-
- PSRR:75dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:SOT-23-5 Thin, TSOT-23-5
- Supplier Device Package:5-TSOP
