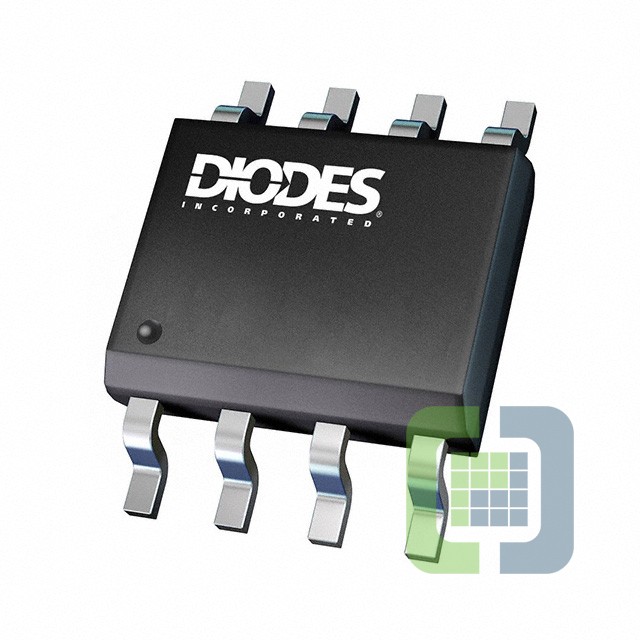

AP7168-SPG-13
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1.2A 8SO
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP7168-SPG-13 Datasheet
-
ECAD Model
- Share
In Stock: 47,662,665
Can ship immediately
Pricing:
- 1$0.67
- 2,500$0.186
- 5,000$0.174
- 12,500$0.162
- 25,000$0.1536
- 62,500$0.15
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):0.8V
- Voltage - Output (Max):5V
- Voltage Dropout (Max):0.8V @ 1A
- Current - Output:1.2A
- Current - Quiescent (Iq):180 µA
- Current - Supply (Max):-
- PSRR:60dB (1kHz)
- Control Features:Enable, Power Good
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:8-SO-EP
Related Products
IC REG LINEAR 2.85V 250MA 4X2SON
- 1: $0.57000
- 3000: $0.19065
- 6000: $0.17835
IC REG LINEAR 2.2V 250MA 4X2SON
- 1: $0.57000
- 3000: $0.19065
- 6000: $0.17835
IC REG LINEAR 2.9V 250MA 4X2SON
- 1: $0.57000
- 3000: $0.19065
- 6000: $0.17835
IC REG LINEAR 3.1V 250MA 4X2SON
- 1: $0.57000
- 3000: $0.19065
- 6000: $0.17835

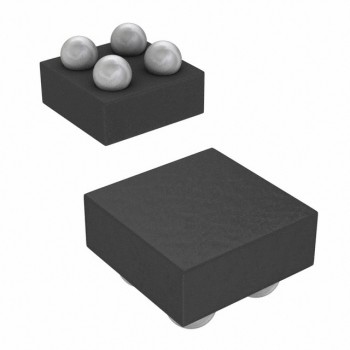

IC REG LINEAR 3.3V 250MA 4DSBGA
- 1: $0.57000
- 3000: $0.19065
- 6000: $0.17835

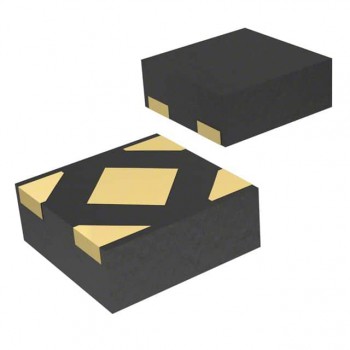

IC REG LINEAR 1.9V 250MA 4X2SON
